momapy

momapy is a library for working with molecular maps. It currently supports SBGN and CellDesigner maps. Its key feature is its definition of a map, that is formed of two entities: a model, that describes what concepts are represented, and a layout, that describes how these concepts are represented. This definition is borrowed from SBML and its extensions layout+render, that allow users to add a layout to an SBML model. momapy aims at extending this definition to SBGN and CellDesigner maps.

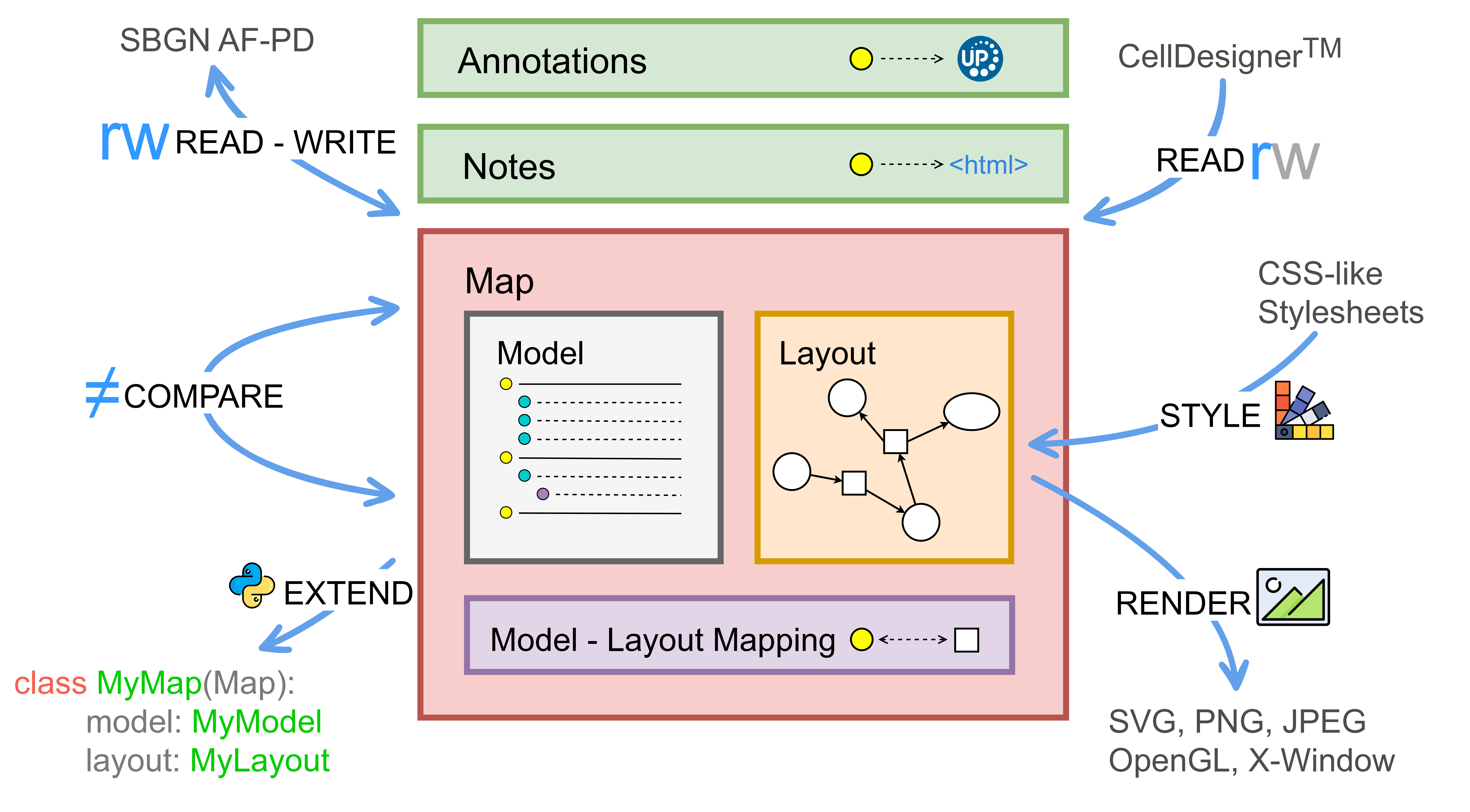

Features of momapy:

Image title

Installation

momapy is available as a Python package and can be installed with pip as follows (Python >=3.10,<=3.12):

pip install momapy

Optional dependencies

momapy includes several optional dependencies for rendering maps with the skia or cairo backends:

skia

pip install momapy[skia]

This extra depends on skia-python (https://github.com/kyamagu/skia-python), which itself depends on the following system packages:

  • opengl
  • libegl
  • fontconfig

cairo

pip install momapy[cairo]

This extra depends on pygobject (https://pygobject.gnome.org/guide/sysdeps.html), which itself depends on the following system packages:

  • glib
  • libffi

all

All optional dependencies can also be installed together:

pip install momapy[all]

Usage

Typical usage of momapy includes reading a map and exploring its model:

1
2
3
4
5
6
import momapy.sbgn.io.sbgnml
from momapy.io import read

map_ = read("my_map.sbgn").obj
for process in map_.model.processes:
    print(process)

Or rendering its layout:

1
2
3
4
import momapy.rendering.skia
from momapy.rendering.core import render_map

render_map(map_, "my_file.pdf", format_="pdf", renderer="skia")

momapy also provides a command-line interface:

1
momapy render my_map.sbgn -o output.pdf

See CLI reference for details.

You can also customize the appearance using CSS-like stylesheets:

1
2
3
4
from momapy.styling import StyleSheet, apply_style_sheet

style_sheet = StyleSheet.from_file("my_style.css")
apply_style_sheet(map_.layout, style_sheet)

User manual

A user manual showcasing the main feature of momapy is available here: User manual.

Documentation

A complete documentaton for momapy's API is available here: API reference.
